Запчасть |
| 1 |

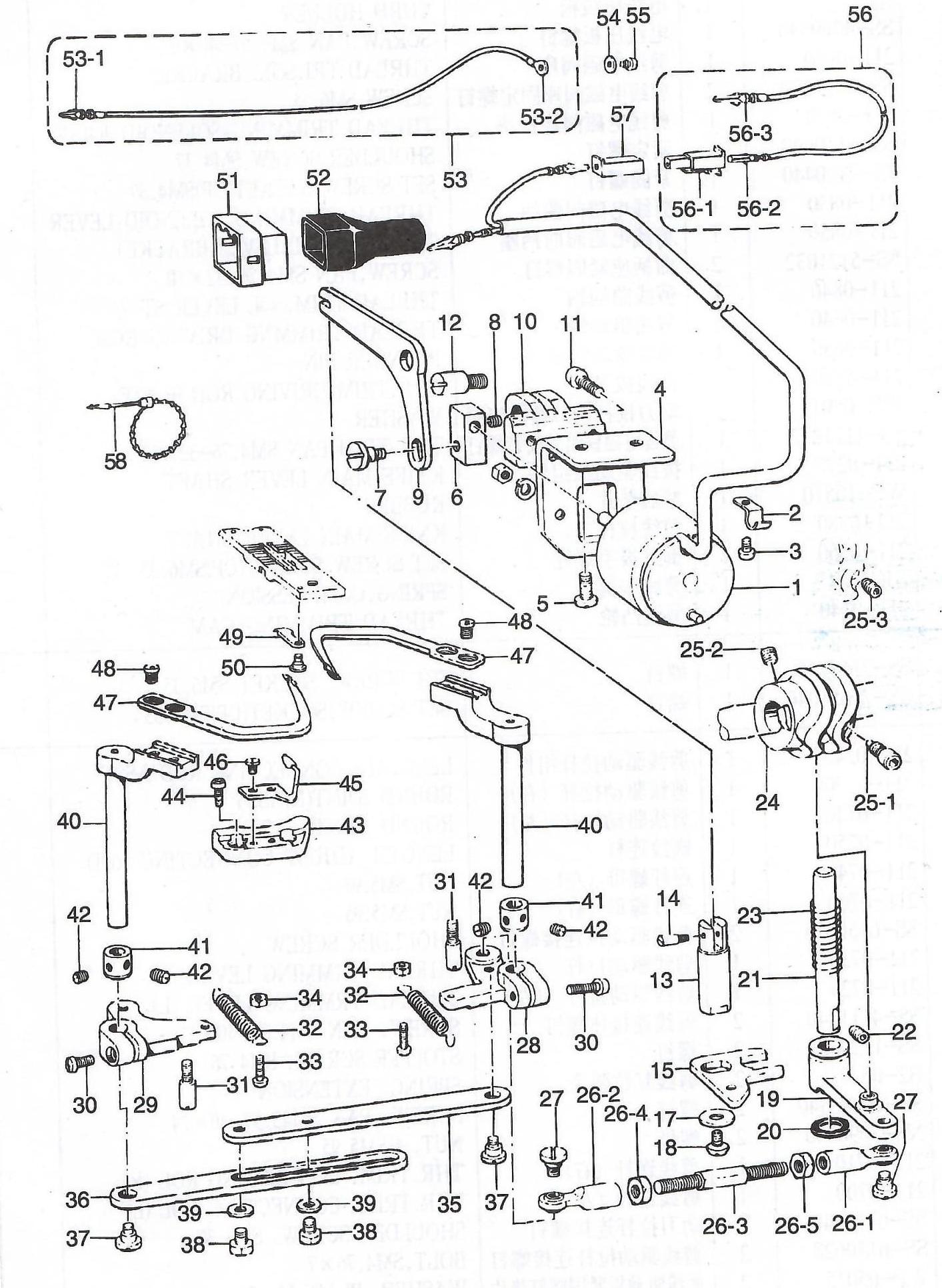

ZJ-8420 211-0265THREAD RTIMMER SOLENOID
|
|
| 2 |
ZJ-8420 CORD HOLDER
|
|
| 3 |
ZJ-8420 SS-4090540ВИНТ,PAN SM3.57-40X5
|
|
| 4 |
ZJ-8420 211-0860THREAD TRI.SOL. BRACKET
|
|
| 5 |
ZJ-8420 SS-5161128ВИНТ,SM6.35
|
|
| 6 |
ZJ-8420 211-0870THREAD TRIMMING SOLENOID JOINT
|
|
| 7 |
ZJ-8420 SS-6110640SHOULDER ВИНТ,SM4.37
|
|
| 8 |
ZJ-8420 SS-7110440SET ВИНТ,SOCKET(CP)SM4.37
|
|
| 9 |
ZJ-8420 211-0830THREAD TRIMMING SOLENOID LEVER
|
|
| 10 |
ZJ-8420 211-0850THR.TRIM.SOL.LEVER BRACKET
|
|
| 11 |
ZJ-8420 SS-5121032ВИНТ,PAN SM4.76-32X10
|
|
| 12 |
ZJ-8420 211-0840THREAD TRIM.SOL.LEVER STUD
|
|
| 13 |
ZJ-8420 211-0640THREAD TRIMMNG DRIVING ROD
|
|
| 14 |
ZJ-8420 211-0650PLUNGER PIN
|
|
| 15 |
ZJ-8420 211-0780THR.TRIM.DRIVING ROD PLATE
|
|
| 17 |
ZJ-8420 WP-05015WASHER
|
|
| 18 |
ZJ-8420 SS-4121232THR.TRIM.PAN SM4.76-32X10
|
|
| 19 |
ZJ-8420 211-0275KNIFE MAIN LEVER SHAFT
|
|
| 20 |
ZJ-8420 WP-10510RUBBER
|
|
| 21 |
ZJ-8420 211-0380KNIFE MAIN LEVER SHAFT
|
|
| 22 |
ZJ-8420 211-0360SET ВИНТ,SOCKET(CP)SM6.35
|
|
| 23 |
ZJ-8420 Bl-10412SPRING, COMPRESSION
|
|
| 24 |
ZJ-8420 211-0140THREAD TRIMMING CAM
|
|
| 25.1 |
ZJ-8420 SS-7160740SET ВИНТ, SOCKET SM6.35
|
|
| 25.2 |
ZJ-8420 SS-71651040SET ВИНТ,SOCKET(CP)SM6.35
|
|
| 26 |
ZJ-8420 211-0245LENG.ADJ.CONNECTING ROD ASSY
|
|
| 26.1 |
ZJ-8420 211-0770ROUND JOINT(R)ASSY
|
|
| 26.2 |
ZJ-8420 211-0730ROUND JOINT(L)ASSY
|
|
| 26.3 |
ZJ-8420 211-0750LENGTH ADJUST CONNECTING ROD
|
|
| 26.4 |
ZJ-8420 211-0740NUT,SM5.95
|
|
| 26.5 |
ZJ-8420 211-0760NUT,SM5.95
|
|
| 27 |
ZJ-8420 SS-6150628SHOULDER ВИНТ
|
|
| 28 |
ZJ-8420 211-0730THREAD TRMMING LEVER (R)
|
|
| 29 |
ZJ-8420 211-0720THREAD TRMMING LEVER (L)
|
|
| 30 |
ZJ-8420 SS-4111240ВИНТ, PAN SM4.37-40X12
|
|
| 31 |
ZJ-8420 SS-1120832STOPPER ВИНТ, SM4.76
|
|
| 32 |
ZJ-8420 B2-05408SPRING, EXTENSION
|
|
| 33 |
ZJ-8420 SS-40990840ВИНТ, PAN SM43.57-40X14
|
|
| 34 |
ZJ-8420 NS-8090340NUT, 1 SM5.95
|
|
| 35 |
ZJ-8420 211-0710THR.TRIM. CONNECTING ROL (R)
|
|
| 36 |
ZJ-8420 211-0700THR.TRIM. CONNECTING ROL (L)
|
|
| 37 |
ZJ-8420 SS-6110640SHOULDER ВИНТ, SM4.37
|
|
| 38 |
ZJ-8420 SS-6150628BOLT,SM4.76X7
|
|
| 39 |
ZJ-8420 WP-05015WASHER, PLAIN M4.76
|
|
| 40 |
ZJ-8420 211-0670MOVEBLE KNIFE LEVER
|
|
| 41 |
ZJ-8420 RC-07912SET ВИНТ COLLAR
|
|
| 42 |
ZJ-8420 SS-2160540SET ВИНТ,SM6.35
|
|
| 43 |
ZJ-8420 211-0300MOVABLE KNIFE BRACKET
|
|
| 44 |
ZJ-8420 SS-7090840ВИНТ,PAN SM3.57-40X8
|
|
| 45 |
ZJ-8420 211-0310SPRING,PLATE
|
|
| 46 |
ZJ-8420 SS-6080344ВИНТ,SM3.18
|
|
| 47 |
ZJ-8420 211-0690MOVABLE KNIFE,HARD MATERIAL
|
|
| 47 |
ZJ-8420 211-0690MOVABLE KNIFE
|
|
| 48 |
ZJ-8420 211-0680ВИНТ,SM4.37
|
|
| 49 |
ZJ-8420 211-0060FIXED KNIFE,HARD MATERIAL
|
|
| 49 |
ZJ-8420 211-0060FIXED KNIFE
|
|
| 50 |
ZJ-8420 SS-60600156SHOULDER ВИНТ.SM2.38
|
|
| 51 |
ZJ-8420 NYLON CONNECTOR(12P)
|
|
| 52 |
ZJ-8420 CONNECTOR CAP
|
|
| 53 |
ZJ-8420 GROUND WIRE ASSY
|
|
| 54 |
ZJ-8420 WASHER
|
|
| 55 |
ZJ-8420 ВИНТ,PAN SM4.37-40X6
|
|
| 56 |
ZJ-8420 W-CORD(S)ASSY
|
|
| 56.1 |
ZJ-8420 CONNECTOR, (3191-01R1)
|
|
| 56.2 |
ZJ-8420 TERMINAL PIN (FEMALE)
|
|
| 56.3 |
ZJ-8420 TERMINAL PIN (MALE)
|
|
| 57 |
ZJ-8420 CONNECTOR(319-01p1)
|
|
| 58 |
ZJ-8420 BEAD BAND
|
|
| 59 |
ZJ-8420 WASNER,PLAIN 5
|
|
1 MACHINE BOBY
2 NEEDLE BAR ROCKING NECHANISM
3 PRESSEER FOOT MECHANISM
4 FEED MECHANISM
5 UPPER SHAFT MECHANISM
6 ROTARY MECHANISM
7 LUBRICATION
8 THREAD TRIMMER MECHANISM

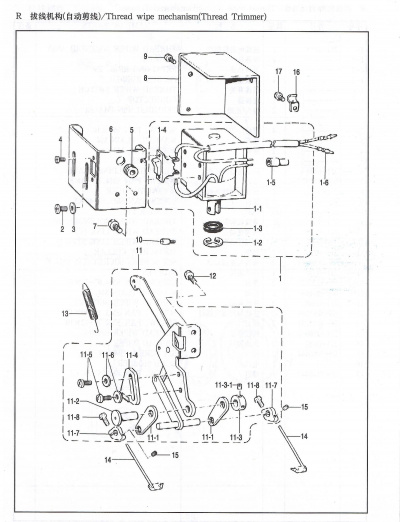

9 THREAD WIPE MECHANISM (THREAD TRIMMER)
10 TENSION RELEASE MECHANISM

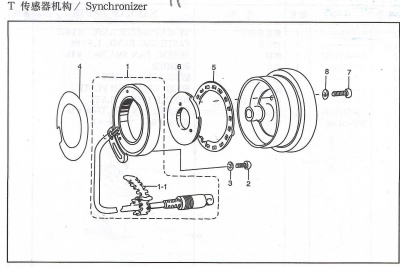

11 Synchronizer
12 QUICK REVERSE MECHANISM
13 QUICK REVERSE SWITCH MECHANISM
14 LOWER SHAFT MECHANISM

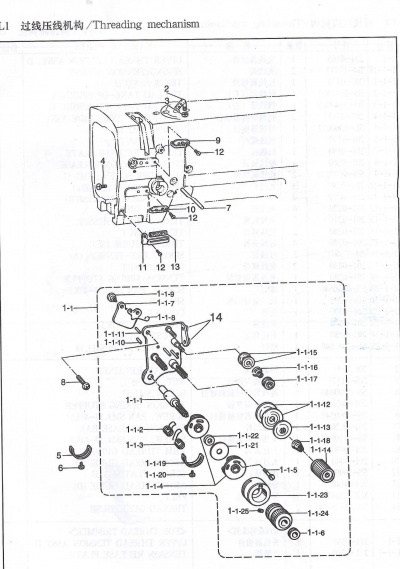

15 THREADING MECHANISM
16 FEED SHAFT MECHANISM
17 GAUGE PART

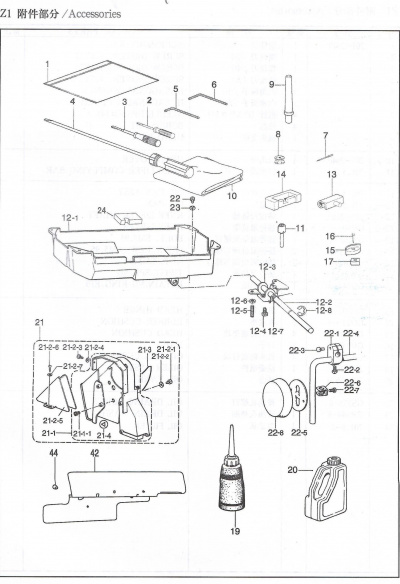

18 ACCESSORIES
19 ACCESSORIES
