Запчасть |
| 1 |

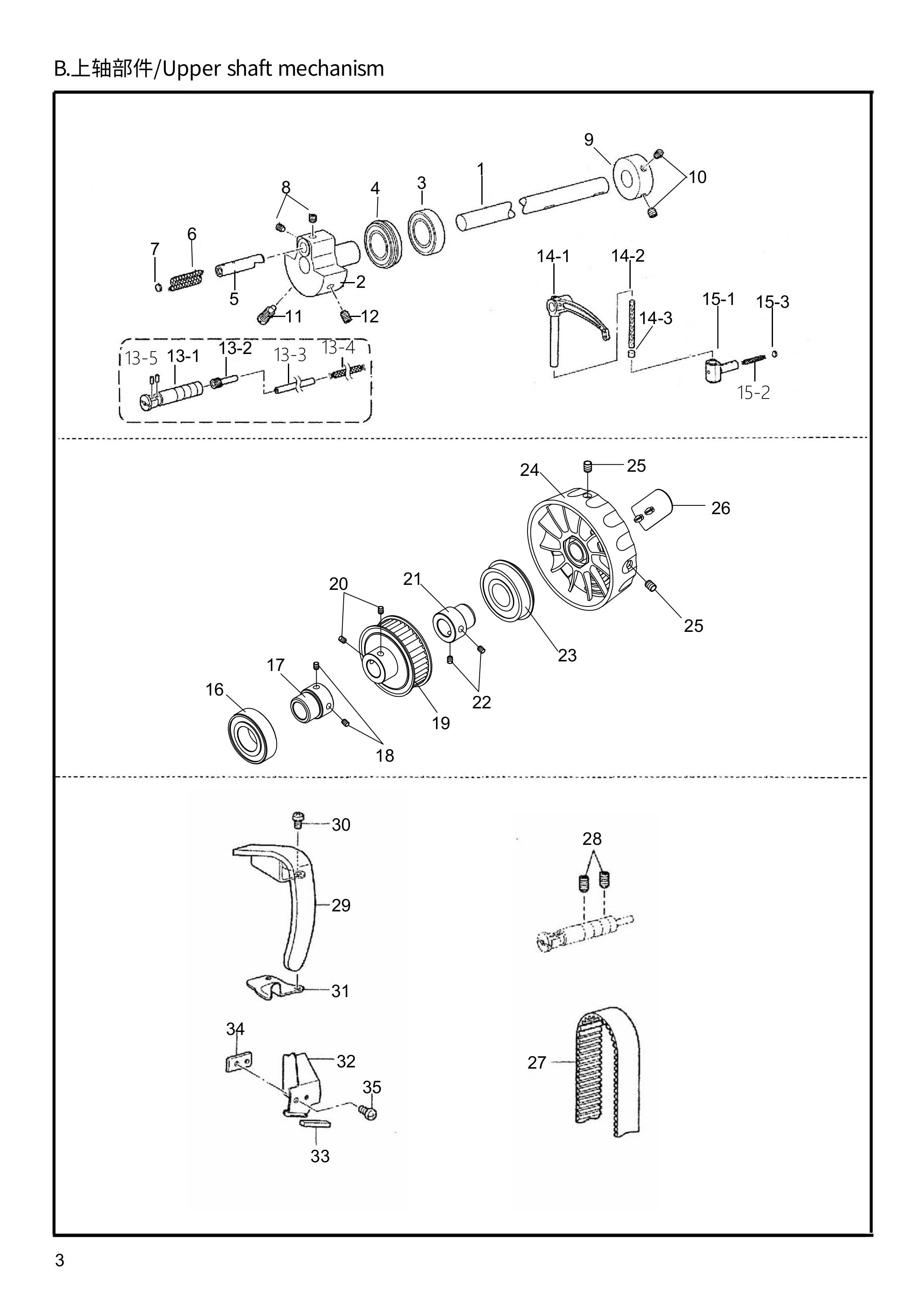

JK-58450J 12302001Upper shaft
|
|
| 2 |
JK-58450J 12904001SA4089001Thread takeup crank
|
|
| 2.1 |
JK-58450J 12904006SA4373001Thread takeup crank
|
|
| 3 |
JK-58450J B04022S25234001Ball bearing,6004ZZ
|
|
| 4 |
JK-58450J B10002S38707001Ball bearing,6004ZZNR
|
|
| 5 |
JK-58450J 12926201SA6166001Crankshaft,NBAR
|
|
| 6 |
JK-58450J 12923050Wick^2.5 L=60
|
|
| 7 |
JK-58450J 11626003113014000Wick cap
|
|
| 8 |
JK-58450J S10017S25260001screw M6x0.75 L=5
|
|
| 9 |
JK-58450J 12308001Bobbin winder driving wheel
|
|
| 10 |
JK-58450J S10019Set screw,socket(ft)M6x6
|
|
| 11 |
JK-58450J 129S30005S25235001Screw M8x6
|
|
| 12 |
JK-58450J S09017S25236001screw M6x0.75 L=10
|
|
| 13.1 |
JK-58450J 12938003Hinge Pin For Thread Take Up Lever
|
|
| 13.2 |
JK-58450J 12938002SA2861001Thread takeup s-shaft unit
|
|
| 13.3 |
JK-58450J 12921002Oil tube,L=190
|
|
| 13.4 |
JK-58450J 12923018Wick, L=400
|
|
| 13.5 |
JK-58450J 20123021Wick, L=30
|
|
| 14.1 |
JK-58450J 12938006SA2935101Thread takeup lever assy,s3
|
|
| 14.1 |
JK-58450J 12938007SA2936101Thread takeup lever assy,s5
|
|
| 14.1 |
JK-58450J 12938202SA2937101Thread takeup lever assy,s7
|
|
| 14.2 |
JK-58450J 12923031Wick,4x4 L=40
|
|
| 14.3 |
JK-58450J 12922015Rubber cap
|
|
| 15.1 |
JK-58450J 11626004S13160001Ttakeup slide block assy,2
|
|
| 15.2 |
JK-58450J 12923012Wick, L=17
|
|
| 15.3 |
JK-58450J 12926016Wick capф4
|
|
| 16 |
JK-58450J B0402176023800Ball bearing,radial 60/22ZZ
|
|
| 17 |
JK-58450J 12908002SA2748001Ball bearing bush
|
|
| 18 |
JK-58450J S10018S23651001Screw M6x0.75 L=6
|
|
| 19 |
JK-58450J 12935002SA2720001Timing pulley assy,U ST
|
|
| 20 |
JK-58450J S10018S23651001Screw M6x0.75 L=6
|
|
| 21 |
JK-58450J 12303002Ball bearing bush
|
|
| 22 |
JK-58450J S10018S23651001Screw M6x0.75 L=6
|
|
| 23 |
JK-58450J B10009S38710001Ball bearing,6204ZZNR
|
|
| 24 |
JK-58450J 304034Pully
|
|
| 25 |
JK-58450J S10019Set screw,socket(ft)M6x6
|
|
| 26 |
JK-58450J 13811021Handwheel lable
|
|
| 27 |
JK-58450J 12935003SA2463001Timing belt
|
|
| 28 |
JK-58450J S10024012061036Set screw,socket(ft)M6x10
|
|
| 29 |
JK-58450J 12312012SA2469001Thread takeup lever cover
|
|
| 30 |
JK-58450J S04028062500816Screw,pan M5x8
|
|
| 31 |
JK-58450J 12912005SA4537001Dust cover
|
|
| 32 |
JK-58450J 1291207900SA3058101Shelter plate
|
|
| 32.1 |
JK-58450J 12912082SA4376101Shelter plate
|
|
| 33 |
JK-58450J 12923001SA3065001Felt
|
|
| 34 |
JK-58450J 12912006SA3059101Holder,shelter plate
|
|
| 35 |
JK-58450J S04028062500816Screw,pan M5x8
|
|
