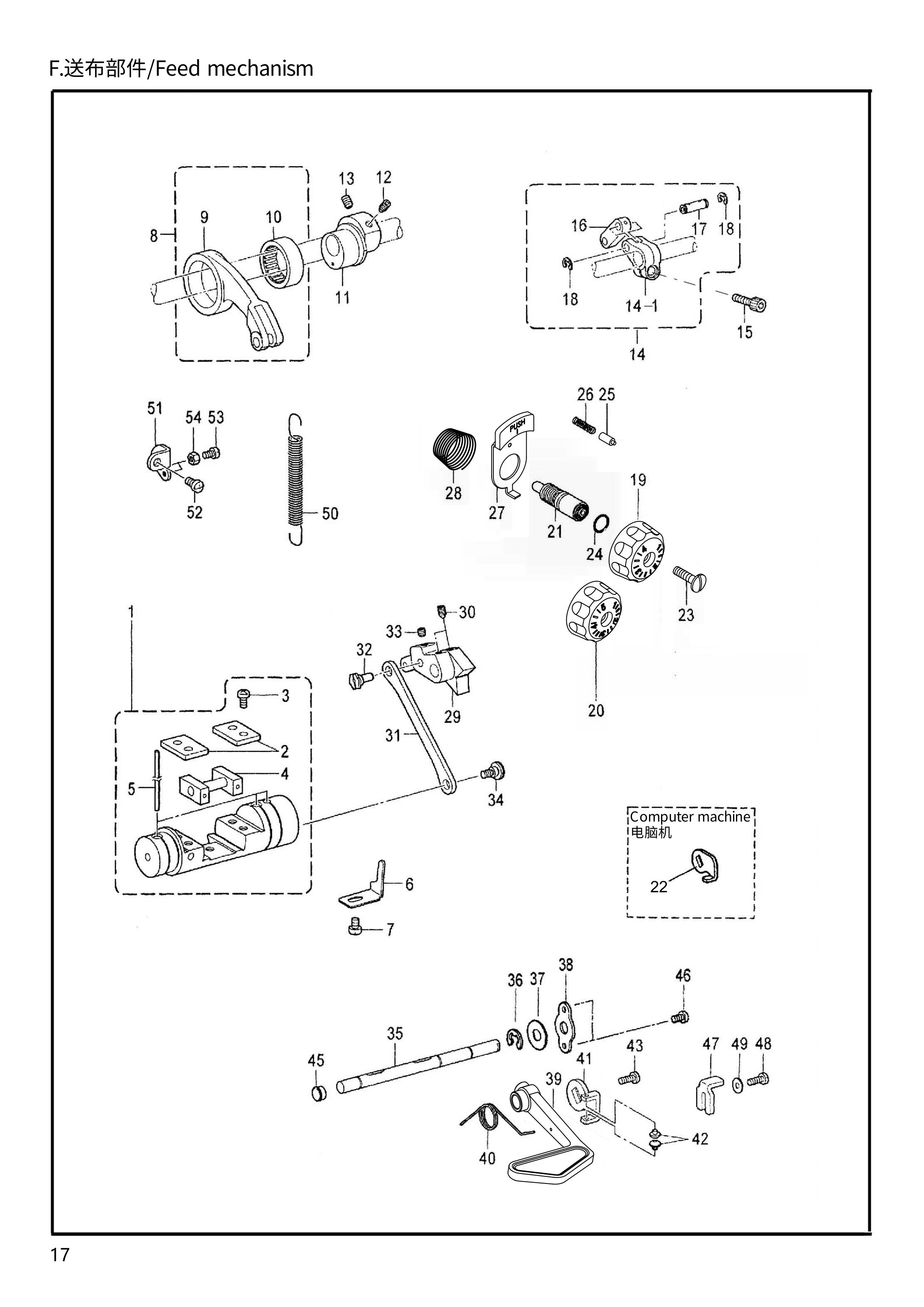

Запчасть |
| 1 |
JK-58450J 1290200500SA3062001Feed regulator assy,11
|
|
| 1 |
JK-58450J 1290200600SA2509001Feed regulator assy
|
|
| 1.1 |
JK-58450J 1290200500SA3062001Feed regulator assy,11
|
|
| 1.2 |
JK-58450J 1290200600SA2509001Feed regulator assy
|
|
| 2 |
JK-58450J 12909003SA2511001Guide plate
|
|
| 3 |
JK-58450J S0402962501016Screw,pan M5x12
|
|
| 4 |
JK-58450J 12909004SA2512001Slide block assy
|
|
| 5 |
JK-58450J 12923018SA2515001Wick,4x4 L=150
|
|
| 6 |
JK-58450J 12912014SA2516001Stopeer
|
|
| 8 |
JK-58450J 1290500800143611201Frocker connecting rod assy
|
|
| 9 |
JK-58450J 12905009143612100Feed rocker connecting rod
|
|
| 10 |
JK-58450J 11624002118954000Needle bearing
|
|
| 11 |
JK-58450J 12910001SA2518001Level feed eccentric wheel 5
|
|
| 11.1 |
JK-58450J 12910201SA2791001Level feed eccentric wheel 7
|
|
| 12 |
JK-58450J S10020Set scre
|
|
| 13 |
JK-58450J S10023Set screw
|
|
| 14 |
JK-58450J 1290400800Feed rocker arm5 assy
|
|
| 14 |
JK-58450J 1290400900Feed rocker arm7 assy
|
|
| 14.1 |
JK-58450J 12904003SA2521001Feed rocker arm5
|
|
| 14.2 |
JK-58450J 12904201SA2793001Feed rocker arm7
|
|
| 15 |
JK-58450J S0507818062032Bolt,socket M6x20
|
|
| 16 |
JK-58450J 12905010143613051Link
|
|
| 17 |
JK-58450J 11626010143616001Shaft
|
|
| 18 |
JK-58450J 1162900248060342Retaining ring ,E6
|
|
| 19 |
JK-58450J 1231100200Stitch length dial,4
|
|
| 20 |
JK-58450J 1231100300Stitch length dial,5
|
|
| 20.1 |
JK-58450J 1231100300Stitch length dial,5
|
|
| 20.2 |
JK-58450J 1231100400Stitch length dial,7
|
|
| 21 |
JK-58450J 129S30007SA3056001Feed regulating stud
|
|
| 22 |
JK-58450J 12912304SA2541001Reverse stitching lever plate
|
|
| 23 |
JK-58450J 101S11022Screw,SMSM3/16"x28
|
|
| 24 |
JK-58450J 10122016108549001О Ring
|
|
| 25 |
JK-58450J 11426022S50098101Positioning pin
|
|
| 26 |
JK-58450J 11427034100328001Notch spring
|
|
| 27 |
JK-58450J 11412079Dial lock lever
|
|
| 28 |
JK-58450J 11427035Spring
|
|
| 29 |
JK-58450J 12909005SA2525001Feed regulator 5
|
|
| 29.1 |
JK-58450J 12909201SA2796001Feed regulator 7
|
|
| 30 |
JK-58450J S1002116061031Set screw,socket(cn)M6x10
|
|
| 31 |
JK-58450J 12905011SA2526001Connecting rod
|
|
| 32 |
JK-58450J 12910002SA2527001Eccentric shaft
|
|
| 34 |
JK-58450J 129S20003SA2528101Shoulder screw,M6
|
|
| 35 |
JK-58450J 12902007SA2529101Shaft,Rlever TR
|
|
| 36 |
JK-58450J 1292900348080342Retanining ring ,E8
|
|
| 37 |
JK-58450J 1162800325100132Washer,plain S 10
|
|
| 38 |
JK-58450J 12912017SA2530001Spacer
|
|
| 39 |
JK-58450J 304033S07374109Reverse stitching lever
|
|
| 40 |
JK-58450J 12927005SA2531001Spring
|
|
| 41 |
JK-58450J 12912018SA3067001Lever guide
|
|
| 42 |
JK-58450J 12922002S48367000Rubber
|
|
| 43 |
JK-58450J 129S11001SA6592001Screw,pan M5
|
|
| 45 |
JK-58450J 40122016104821001Rubber cap,10.5
|
|
| 47 |
JK-58450J 12912019SA2532001Stooper
|
|
| 48 |
JK-58450J S0402962501216Screw,pan M5x12
|
|
| 49 |
JK-58450J 1292801825050236Washer,plain M5
|
|
| 50 |
JK-58450J 12927006S07376001Feed regulator spring
|
|
| 51 |
JK-58450J 12912020SA2533001Spring hook
|
|
| 52 |
JK-58450J S0403862060816Screw,pan M6x10
|
|
| 53 |
JK-58450J S0402962501216Screw,pan M5x12
|
|
| 54 |
JK-58450J N0101721500106Nut 1 M5
|
|
